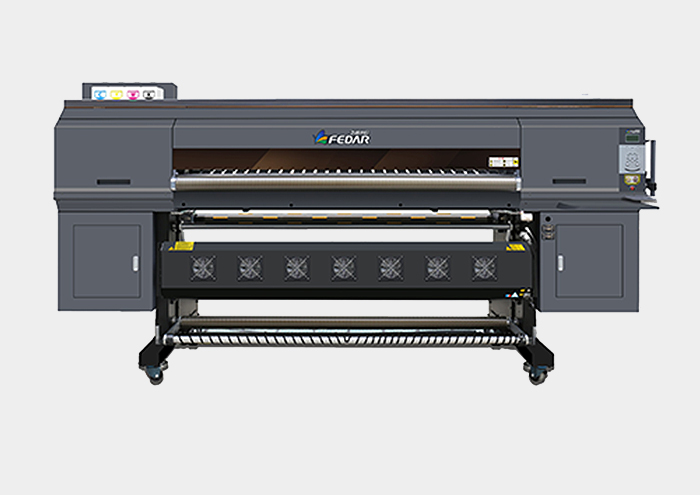

Model: Fedar FD5198E Sublimation Printer
Max Printing Width: 1900mm
Printer Head: 8 Epson I3200-A1
Max Printing Resolution: 3200DPI
Max Printing Speed: 370 Sqm/h (Single Pass)
TECHNICAL DATA:
| Model | Fedar FD5198E Sublimation Printer |
| Printing Size | 1900mm |
| Printhead | 8 EPSON Original I3200-A1 Heads |
| Max Resolution | 3200DPI |
| Ink Color | C M Y K |
| Ink Type | Sublimation Ink |
| RIP Software | MAINTOP6.0, PHOTOPRINT, ONYX, NEOSTAMPA |
| Interface | Gigabit Port |
| Print File Format | BMP, TIF, JPG, PDF Etc. |
| Heating System | Extra Front Heating System |
| Feeding Method | Roll to Roll, Leaf |
| Color Management | ICC Based; Density & Curves Adjustable |
| Power Supply | 50HZ/60HZ, 110~220V, 10A |
| Package Size (L*W*H) | 3670*1270*2110mm |
| Working Size (L*W*H) | 3550*1335*1800mm |
| Gross Weight | 600KGS |
| Working Environment Temperature | 20C-35C (68F-95F) |
| Working Environment Humidity | 35%-65%Rh |
| Printing Speed | 360X1200 1pass 370 Sqm/H 360X2400 2pass 185 Sqm/H |
DETAILS:
Fedar FD5198E Sublimation Printer uses 8 Original Epson I3200-A1 Print Heads. Max Resolution: 3200DPI. Max Printing Speed: 370 Sqm/hr. The printing speed can be more than 370 Sqm/hr, it uses TFP thin film piezoelectric technology and 2.5PL variable dot ink drop function, accurately positioning the ink drop, the image color layer is richer and fuller, and the printing effect is more exquisite.
Fedar FD5198E sublimation printer equipped with advanced intelligent nozzle cleaning and moisturizing device, providing safe and convenient nozzle cleaning and maintenance functions, making operation and maintenance more convenient.
The height of the double-head nozzle independently developed can be adjusted arbitrarily, and it can flexibly respond to different thicknesses of printing materials. The anti-scratch-paper function on both sides of the small frame can reduce the damage of the nozzle caused by the paper tilting.
Fedar FD5198E sublimation printer printing platform is controlled within plus or minus 7.5 wires, which lays the foundation for high-precision and high-quality production. The overall honeycomb aluminum alloy platform is hard-oxidized on the surface and will not deform for a long time.
Fedar FD5198E sublimation printer uses four super-large-capacity ink tank with independent and continuous ink supply. The powerful continuous supply ink supply system provides support for the improvement of production efficiency, avoiding the frequent shortage of ink in production and the heavy work caused by back and forth inspection.
Fedar FD5198E Sublimation Printer use Fedar ink shortage system, reduces the tediousness of frequently checking the remaining ink, and promptly reminds to add ink to ensure the continuity of printing work.
Fedar FD5198E use Stable Fedar Printing System. The core components are made of high-quality industry accessories such as Japanese THK ultra-quiet linear guide rails, Japanese NSK bearings, German IGUS INK chain, LEADSHINE servo motor, etc. All of these ensure the accuracy of the machine and the stability of long-term work.
Fedar FD5198E uses Haevy Type Feeding and Taking-up device with tension sensor bar ,make the force even and make the paper more smooth. It's sample and convenient to take up printed media.
Dry System of Fedar FD5198E sublimation printer of synchronized with printing, energy saving and emission reduction, the temperature can be adjusted according to the actual situation during printing.
Fedar FD5198E Sublimation Printer frame is welded with square steel, industrial grade design, the whole structure is strong and stable, which ensures that the equipment is stable and does not shake during the high-speed printing process.
Model: Fedar FD5198E Sublimation Printer
Printing Width: 1900mm
Print Head: 8 Epson 3200 Heads
Printing Speed: 1pass: 370 Sqm/Hr
2pass: 185 Sqm/Hr
Interface: Gigabit LAN
Print Media: Transfer Paper
Drying Method: Extra Dryer Device
RIP Software: Maintop, Onyx, Photo Print
Ink Supply Method : Bulk Ink Supply System
Printing File Forms: TIFF, JPG, EPS, PDF, etc.
Ink Type: Sublimation Ink, Water Based Dye Ink
Media Transfer: Auto Tension Taking-Up Media Device
